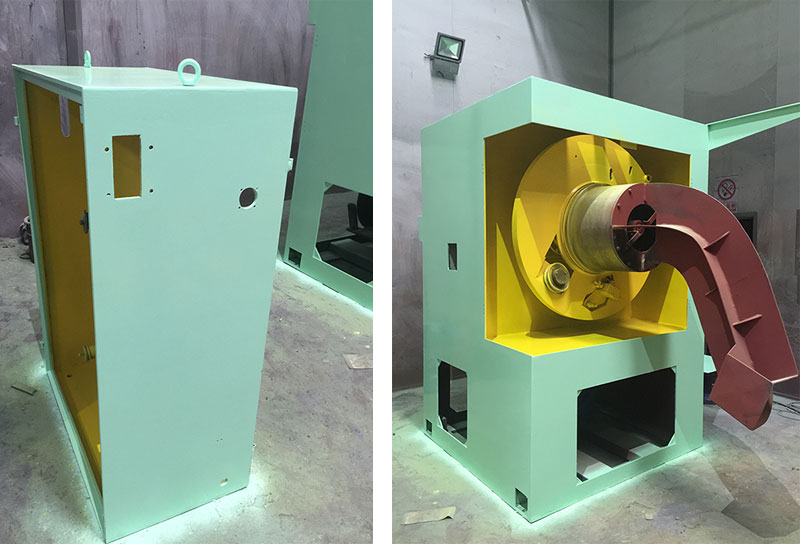

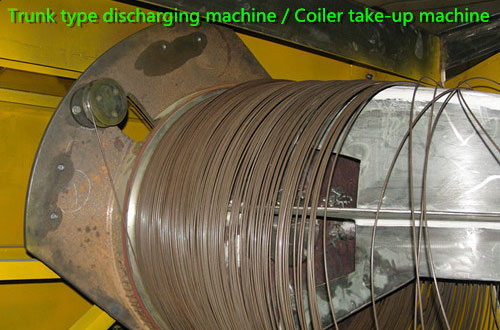

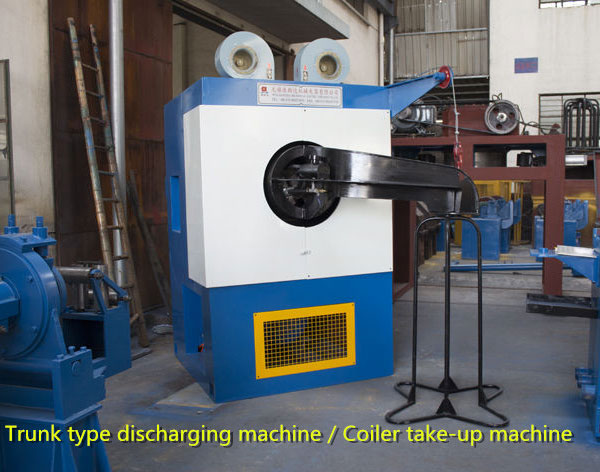

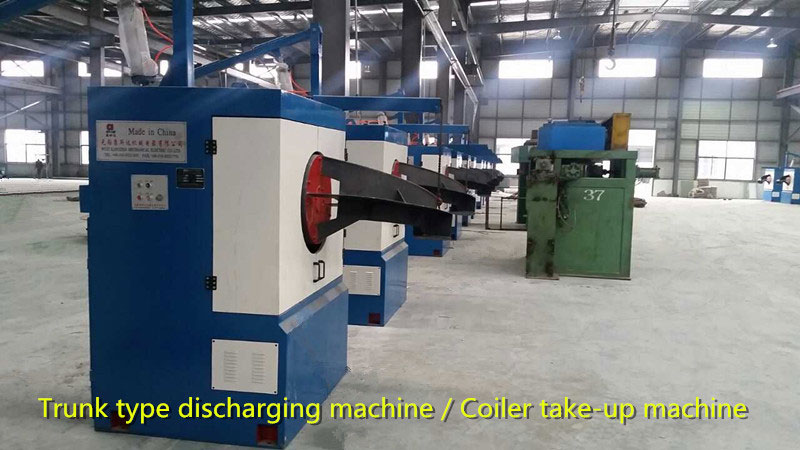

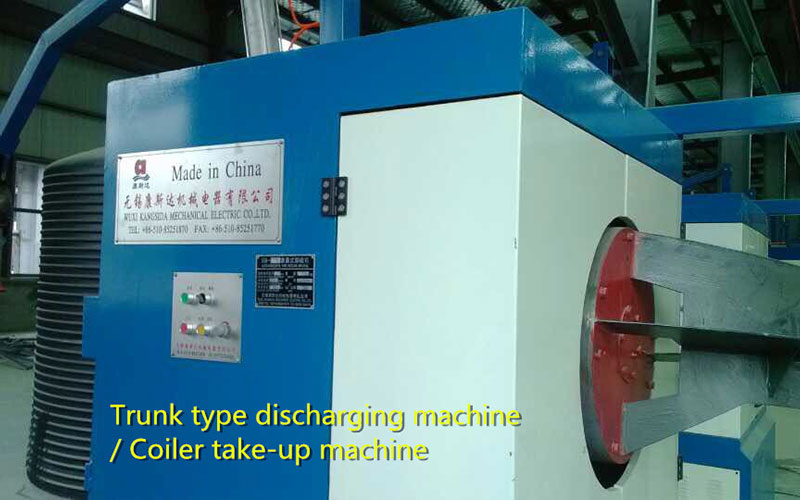

Trunk-type Unloading Line Machine

ZX automatic horizontal (trunk) type wire unloading machine are independent research and developed, design, produced by WUXI KANGSIDA MECHNICAL ELECTRIC APPLIANCE CO., LTD. Often used for wire rod market, high, medium, low carbon steel wire, copper wire, aluminum wire tensile strength low heavy wire unloading, mainly supporting the pulley type continuous wire drawing machine, so that the whole drawing, wire unloading work can be carried out continuously. The machine features: AC frequency conversion control, dynamic balance outstanding, velocity distribution of wire drawing machine, coil weight and saving labor.
Note: according to the needs of users with mechanical speed ratio, drum diameter.

NO.	ITEM	UNIT	NAME ZXA300～600
1	The take-up reel diameter	mm	Ф300～600
2	Accept (unloading) diameter	mm	Ф1.4～2.6
3	Accept (unloading) line speed	m/min	According to customers
4	Accept (unloading) line intensity	Mpa	1900～2600
5	Motor power	Kw	11～45
6	Shape size	mm	1500×1550×2350
7	weight	t	2.5

The DV series of vertical pulling machine ZX automatic horizontal (trunk) type wire unloading machine are independent research and developed, design, produced by WUXI KANGSIDA MECHNICAL ELECTRIC APPLIANCE CO., LTD. It’s a set of collecting line and drawing as whole heat treatment equipment. Suitable for heat treatment of heavy coil take-up, volume, bright drawing and patented steel wire and steel wire stainless steel wire annealing after market close winding. The machine features: continuous production, take-up reel big, one belt combined cycloid reducer drive, AC variable frequency control, stepless speed adjustment.
Note: we can special design according to special requirements of users and technical parameters.

Typical models		DV1000	DV800	DV600	DV450
Draw diameter	mm	1000	800	600	450
Accept (unloading) wire diameter	mm	12.0-6.0	7.0-3.0	5.0-2.0	3.0-1.0
Accept (unloading) line speed	m/min	<10	<20	<20	<25
Motor power	Kw	5.0-3.0	3.0-2.2	2.2-1.0	0.75
